8506 Diamond Grinding Plate M6-Connection

3-hole bracket with M6-connection.
2 diamond segments 40x10x10 mm.

Grit 40 = for standard use, high diamond concentration, good performance - medium fine surface finish.
Standard grit 40 available from stock. Please check with us the leadtime for further grit sizes.

8506.11.24 Diamond grinding plate M6-connection

Applications: green concrete, screed, abrasive materials

Art-No.ColorSegmentGrit
8506.11.24 green hard 40
8506.11.44 Diamond grinding plates M6-connection

Applications: hard concrete or screed

Art-No.ColorSegmentGrit
8506.11.41 red medium 16
8506.11.42 red medium 20
8506.11.43 red medium 30
8506.11.44 red medium 40
8506.11.45 red medium 80
8506.11.46 red medium 150
8506.11.64 Diamond Grinding Plate M6-Connection

Application: very hard concrete or screed

Art-No.ColorSegmentGrit
8506.11.61 blue soft 16
8506.11.62 blue soft 20
8506.11.63 blue soft 30
8506.11.64 blue soft 40
8506.11.65 blue soft 80
8506.11.66 blue soft 150

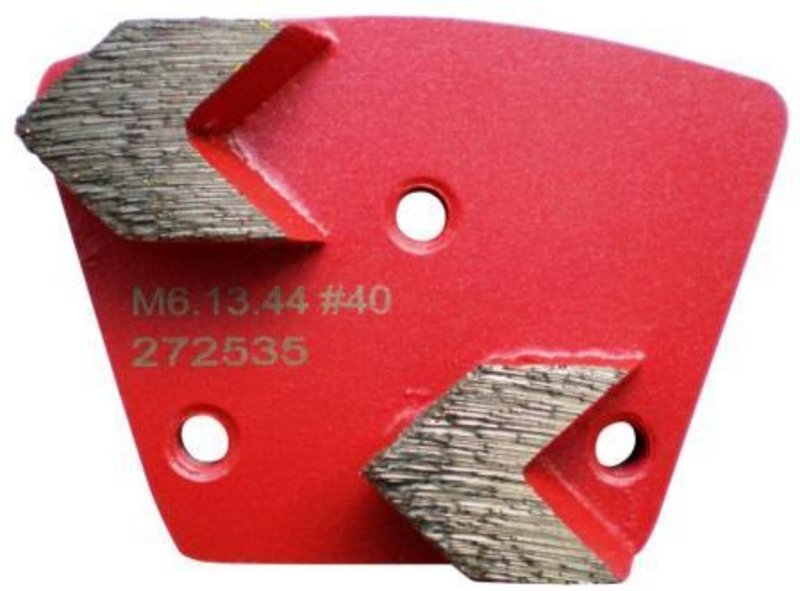

Arrow-shaped segments for quick and easy removal of coatings and the grinding of underlying concrete surfaces in one operation.


Applications: hard concrete or screed, color, epoxy and synthetic materials

8506.13.44-R Diamond Grinding Plate Arrow M6-Connection
rotation clockwise
8506.13.44-L Diamond Grinding Plate Arrow M6-Connection
rotation anti-clockwise
Art-No.ColorSegmentGrit
8506.13.44-R red medium 40 clockwise
8506.13.44-L red medium 40 anticlockwise

HCO-rhombus-shaped-segments for grinding extremely hard materials.
High performance diamond for very aggressive and fast grinding.
Segment height 10 mm.

8506.15.73 Diamond Grinding Plate for hard materials

Applications: extremly hard concrete, extremely hard surfaces

Art-No.ColorSegmentGrit
8506.15.73 black extremly soft 30/HCO
